EXACTRIXTesting Of Manifolds
Patents Granted and Pending

CHART SUMMARY   Chart 4

Exactrix Charts

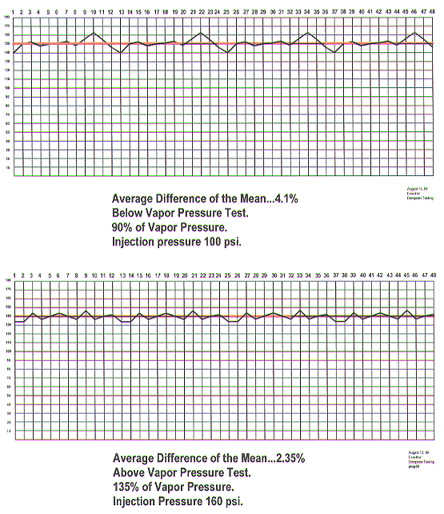

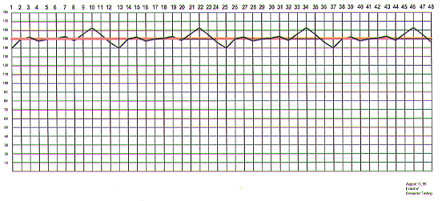

Average Difference Of The Mean...4.1%
Below Vapor Pressure Test.
90% Of Vapor Pressure
Injection Pressure 100 psi.

Exactrix Charts

Average Difference Of The Mean...2.35%
Below Vapor Pressure Test.
135% Of Vapor Pressure
Injection Pressure 160 psi.

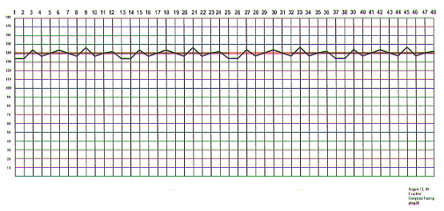

Expanded graph for 48 port manifold using a 12 port manifold with a multiple of 4. This is a typical airseeder manifold graph using .040 terminal injection orifices and .120 range orifices. Manifold accumulator set at 80 psi. Transfer pump turning 4 tomes injection pump speed.
